Industrial Process Water Online Monitoring and System Integration: From Sensor Selection to PLC, Modbus, and Closed-Loop Operation

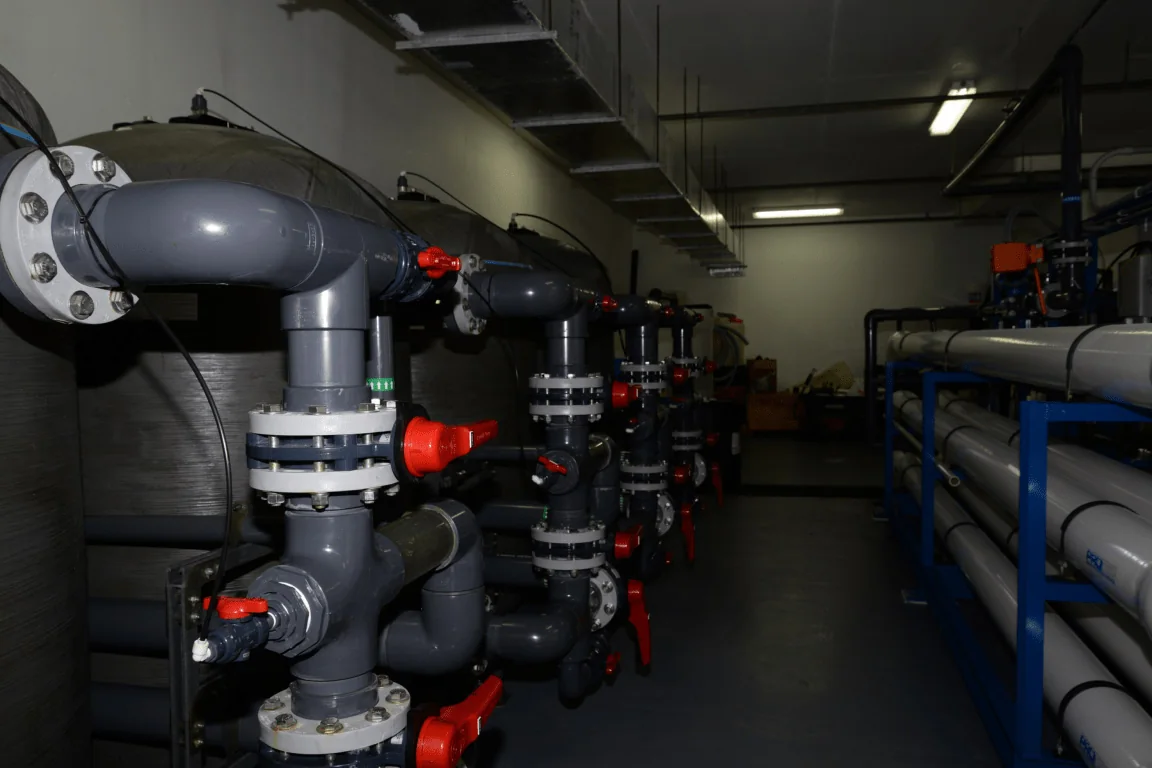

Why This Industry Needs Continuous, Interpretable Water Quality Data

Industrial process water monitoring targets not static samples but processes that change with flow, temperature, raw materials, weather, equipment status, and human operations. Traditional sampling and laboratory analysis are irreplaceable but only cover the sampling moment. For electronics manufacturing, metalworking, food and beverage, cleaning lines, circulating cooling, boiler make-up, process reuse, and industrial water treatment equipment, the real challenge lies in what happens between two samples, how long changes persist, whether they are synchronized with a process action, and when a review is warranted. The primary value of continuous sensors is to fill these gaps into time series.

The goal of this approach is to link water quality parameters to product quality, equipment protection, chemical dosing, discharge risk, and water reuse, forming a measurement chain that can be understood by the control system and verified by the maintenance team. Therefore, a project should not start with “which probe to buy” but with the decision problem, acceptable response time, data use, and evidence level. Data for alarms, process optimization, customer presentation, and regulatory reporting require different calibration, redundancy, and review procedures. Define the purpose first to avoid generating large amounts of unused data with expensive equipment.

Step 1: Formulate Monitoring Objectives as Verifiable Engineering Problems

An executable objective should include the object, location, time scale, acceptable risk, and subsequent actions. For example: “When key trends in TOC, COD, UV254, turbidity, color, temperature, conductivity, TDS, and salinity deviate from the normal baseline and persist for a certain duration, the system issues a graded alarm; operators inspect the process and field status, and retain a reference sample if necessary.” This statement is more valuable than “real-time water quality monitoring” because it simultaneously constrains points, sampling period, thresholds, review, and responsible persons.

• Trend objectives: identify baselines, diurnal cycles, seasonal variations, start-up and shutdown processes.
• Event objectives: capture sudden rises, drops, sustained drifts, and unreasonable parameter combinations.
• Control objectives: provide input for aeration, blowdown, flushing, bypass switching, filter management, or process adjustments.
• Quality objectives: preserve raw values, status codes, cleaning and calibration records, and manual notes for traceability.
• Commercial objectives: use continuous evidence to demonstrate the value of products, processes, or services, while clearly defining measurement boundaries.

At project initiation, it is recommended to create a one-page “Measurement Task Sheet”: list the normal range, minimum meaningful change, expected response time, maximum acceptable data gap, reference method, maintenance resources, and output recipient. The task sheet is not a one-time document but should be updated after commissioning, seasonal changes, and process modifications.

Parameter Combination: Different Measurement Mechanisms Should Explain Each Other, Not Simply Stack

In an industrial site, the first question to answer is “What action will the measurement result be used for?”. Alarm, process optimization, quality release, and regulatory reporting have completely different requirements for accuracy, response time, redundancy, maintenance, and auditing. Write the use case into a control cause-effect chain to determine the range, point, sampling period, and whether laboratory confirmation is needed.

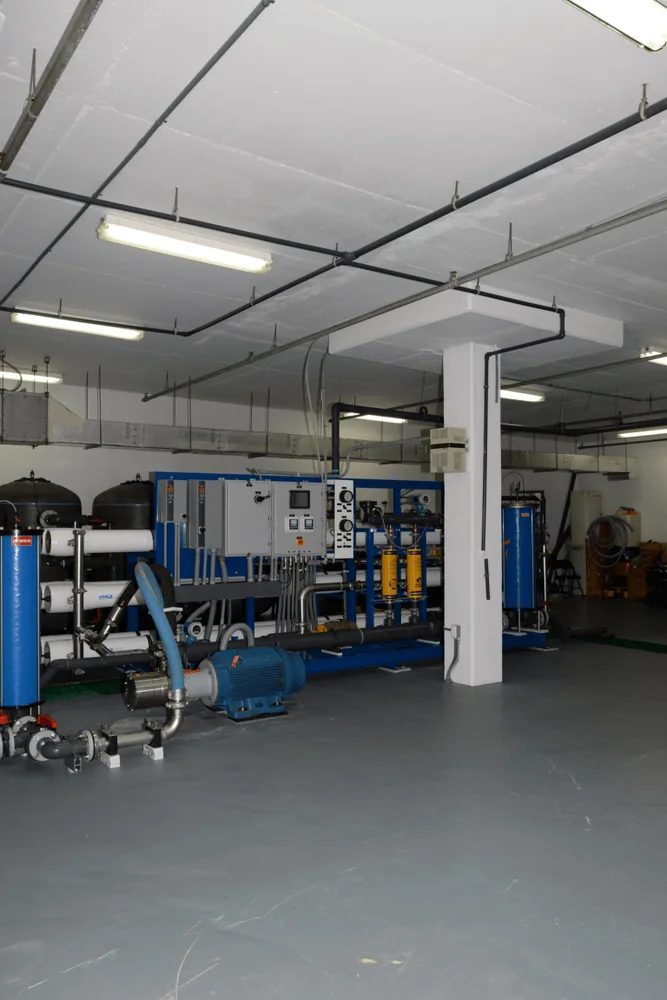

Correspondence with AtomBit Product Capabilities

Field-grade probes connect to PLC or edge gateways via RS485/Modbus; NSDD6 is for multi-parameter optical trends in complex waters, NSDD-Lite3 for compact systems and cleaner waters, and the 5-in-1 probe provides ion and salinity-related parameters. For OEM customers needing to embed into their own equipment, the BA series ASICs and matching electrodes integrate front-end measurement, temperature compensation, and digital interface onto the motherboard.

The core products covered in this article are NSDD6, NSDD-Lite3, 5-in-1 EC/TDS probe, and BA series sensor interface ASICs. Selection must be based on the latest specification sheet, target water sample, range, temperature, pressure, materials, interface, and installation conditions. The website article provides engineering logic, not a substitute for item-by-item technical confirmation; for new water bodies or cross-industry applications, AtomBit can cooperate on sample evaluation, interface confirmation, trial installation, and model validation.

System Architecture: From Probe to Actionable Information Requires a Complete Data Chain

A reliable system typically consists of five layers: the measurement layer obtains raw signals stably; the edge layer handles power supply, communication, time synchronization, and status acquisition; the platform layer manages storage, unit standardization, quality tagging, and permissions; the analysis layer handles baselines, rate of change, correlations, and event rules; the business layer delivers results to operations, quality, after-sales, or customer interfaces. Missing any layer can render a seemingly online system practically worthless.

RS485/Modbus RTU is suitable for multi-device buses in industrial sites. Engineers should unify addresses, baud rates, parity, register types, data lengths, byte order, units, and scaling factors; the master polling should set reasonable timeouts and retries, and communication failures should not be automatically written as zero. It is best to include device time, platform receipt time, quality status, maintenance status, and raw register snapshots in each record for problem tracing.

Faster Data Frequency Is Not Always Better

The sampling period should be shorter than the change time of the target event, but also consider sensor response, flow cell replacement, network bandwidth, and storage. Second-level acquisition is suitable for equipment diagnostics, minute-level averages for operation screens, and hourly/daily statistics for management reports. It is recommended to keep high-frequency raw data and then generate derived data at different time scales, avoiding the inability to review transients if only averages are stored.

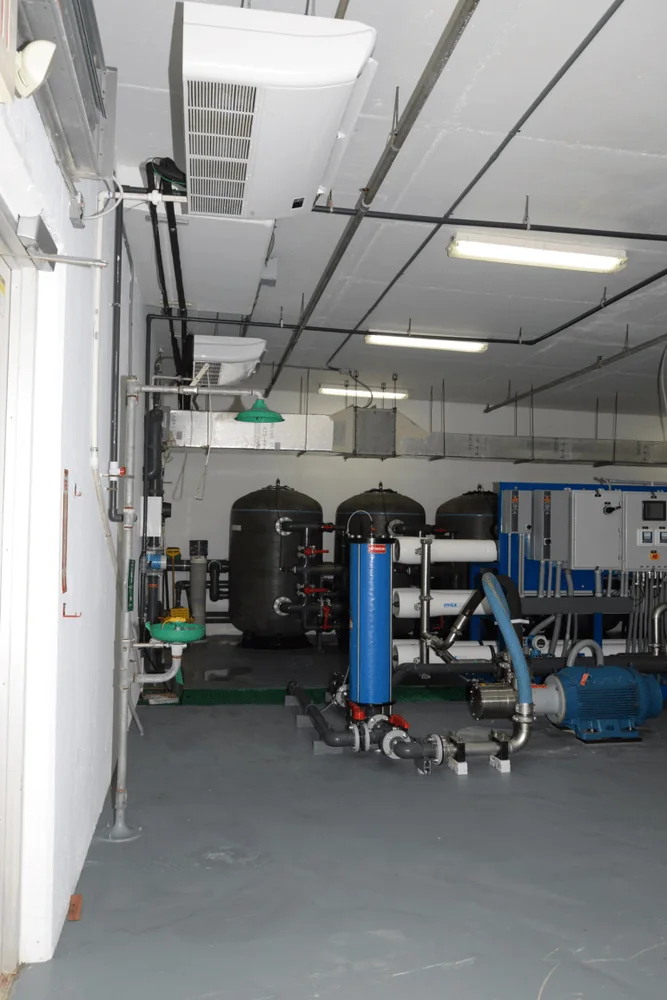

Point Location and Installation: Representativeness Is Often More Important than Nominal Accuracy

High-pressure, closed pipelines are usually suitable for bypass flow cells with stable flow; open tanks can use immersion installation, but bubbles, scratches, and deposits must be avoided. Bypass must consider sampling representativeness, shut-off valves, draining, flushing, return location, and safe isolation during maintenance.

Immersion installation should keep the sensing surface continuously submerged, avoid direct impact and cable stress, and leave space for lifting, cleaning, and replacement. Flow-through installation should ensure representative samples, stable flow, bubble removal, and supporting shut-off, bypass, drain, and flush structures. High-pressure, high-temperature, corrosive, or food-contact scenarios require separate confirmation of seals, materials, and hygiene requirements.

• Survey actual minimum and maximum water levels, flow, temperature, pressure, and pollution load.
• Use portable instruments or sampling to compare candidate points and confirm spatial representativeness.
• Check for bubbles, deposits, floating debris, sunlight, vibration, electromagnetic interference, and maintenance safety.
• Record installation depth, orientation, flow cell volume, pipe length, and photos; include in site archive.
• During commissioning, keep reference samples to verify point and response time before finalizing design.

Calibration, Verification, and Data Quality: Establish a “Pre-Cleaning – Post-Cleaning – Post-Calibration” Evidence Chain

Quality control for continuous sensors cannot rely on just a calibration date. Each maintenance session should first record the stable value and field status before cleaning, then complete cleaning and record the value after cleaning, and finally perform verification with a reference solution, portable reference instrument, or representative sample. These three sets of data can distinguish contamination effects, calibration drift, and real water changes. If only the final normal value is kept, the basis for judging whether historical data can be used is lost.

Laboratory comparisons must ensure that samples correspond temporally and spatially to sensor readings, and record sampling, preservation, transport, method, and uncertainty. For spectral proxy parameters, the calibration should cover the target water body's normal, low, high, and typical abnormal values; model evaluation should not just look at correlation coefficients but also examine residuals, low-end bias, high-end saturation, seasonal stability, and cross-point applicability. When the water matrix changes significantly, re-validation is necessary.

Data platforms should use quality tags rather than simply deleting anomalies. It is recommended to at least distinguish: valid, under maintenance, cleaning recovery period, under calibration, communication failure, out of range, suspected bubble, suspected contamination, and pending review. Customer-facing charts can hide invalid segments, but internal databases must retain original values, reasons, and processing records.

Alarm Design: Thresholds, Rate of Change, Duration, and Parameter Correlation Are Indispensable

A single fixed threshold is easily affected by seasonal, recipe, raw water, and operating condition changes. More robust rules can combine absolute thresholds, relative baselines, rate of change, duration, consistency among multiple parameters, and equipment status. For example, a sudden rise in turbidity but no response in flow, UV254, and organic trends may indicate bubbles or local particles; if multiple related parameters change synchronously and persist, it is more worthy of triggering sample retention and manual inspection.

Alarms must be bound to a disposal process: who receives, how long to confirm, which status to check first, whether to re-measure, when to retain a sample, when to escalate, and when to close. Unverified automatic control should set upper/lower limits, hysteresis, minimum runtime, interlocks, and manual override to prevent a brief sensor anomaly from directly driving critical equipment.

Common Failure Modes and Prevention Measures

• Selecting only by interface while ignoring range, temperature, pressure, and material compatibility
• Improper RS485 bus star connection, missing termination resistors, or wrong shield grounding
• PLC polling too fast causing communication congestion or data duplication
• Alarm values set without considering process lag and equipment response time
• No reference samples retained and no versioned models after system goes online

The common feature of these problems is that the equipment itself may not be damaged, but the data has lost representativeness or interpretability. Prevention strategies should cover field structure, communication, algorithms, personnel, and documentation, rather than attributing all issues to “recalibration.” When an anomaly occurs, first check status codes, raw signals, adjacent parameters, maintenance records, and field events, then decide on cleaning, calibration, re-modeling, or component replacement.

How to Calculate Total Cost of Ownership and Project Benefits

Shorten anomaly detection time, reduce product defects, equipment scaling and corrosion, and unplanned shutdowns caused by water quality fluctuations, and provide continuous evidence for water conservation, reuse, and supply chain quality audits.

The cost model should at least include sensors and accessories, installation structure, power and communication, platform, reference samples, consumables, labor, inspection travel, downtime, spare parts, and data review. Benefits can be measured by anomaly lead time, reduced manual sampling, avoided downtime or quality loss, chemical and energy optimization, reduced false alarms, and customer service efficiency. For reagent-free solutions, compare the whole lifecycle of reagent procurement, storage, waste liquid, and pump/valve maintenance with traditional methods.

Do not rush to promise large-scale savings during the pilot phase. First, select a point with a clear pain point and accessible reference samples, run it through a typical operating cycle, and collect data on availability, maintenance time, number of event detections, false alarm rate, and relationship with reference methods. Only after forming a verifiable pilot report can large-scale replication have a reliable basis.

Phased Implementation Roadmap

1. Requirements definition: determine business problem, parameters, point candidates, data use, reference method, and responsible persons.
2. Sample and interface assessment: verify water sample range, environmental conditions, power supply, communication, materials, and main control interface.
3. Small-scale pilot: establish installation archive, baseline, maintenance cycle, reference samples, and quality tags.
4. Model and alarm validation: use independent data to check error, residuals, seasonal stability, and alarm handling effectiveness.
5. Scale deployment: replicate validated structure, address plan, parameter table, operation and maintenance forms, and spare parts strategy.
6. Continuous improvement: review data availability, maintenance cost, event value, and model version on a monthly or quarterly basis.

Keep “exit conditions” at each stage: if the point is not representative, the target change is smaller than system uncertainty, maintenance resources are insufficient, or the data has no clear user, modify the plan rather than continue adding equipment. For new industries not pre-covered by AtomBit, the customer's process knowledge and our sensing, interface, and engineering validation capabilities can jointly define new application boundaries.

Procurement and Technical Review Checklist

• Are the target water body, parameters, range, temperature, pressure, materials, and expected response time documented?
• Do the sensor, probe, cable, cleaning device, flow cell, bracket, gateway, and power supply form a complete BOM?
• Have communication protocol, registers, byte order, address, baud rate, status codes, and abnormal values been coordinated?
• Are calibration solutions, reference instruments, laboratory methods, sampling plans, and acceptance criteria clear?
• Are automatic cleaning, manual maintenance, spare parts, training, remote support, and data responsibilities assigned?
• Do all promotions, alarms, and reports accurately describe the boundaries of trends, proxies, screening, and compliance results?

Engineering Appendix: A Review Method from a Single Reading to a Credible Conclusion

When reviewing a segment of data, the first step is to check completeness: is the time continuous, did the device clock jump, were communication failures written as zero, were maintenance periods correctly marked? The second step is physical plausibility: are temperature and range reasonable, is the rate of change possible, do related parameters show exactly the same or completely opposite anomalies? The third step is field evidence: do pump, valve, aeration, feeding, rainfall, discharge, cleaning, and sampling records correspond to the curve?

The fourth step is comparison. First compare with the device's own historical baseline, then with neighboring points, other measurement mechanisms, and reference samples. When comparing, time, units, temperature conditions, and sampling positions must be unified. Inconsistency between two methods does not automatically mean the online sensor is wrong; it may come from sample inconsistency, preservation changes, laboratory uncertainty, or different measurement objects; the difference itself is important information for understanding the water body.

The fifth step is to form a conclusion hierarchy. Conclusions can be classified into “trend changes with normal equipment status,” “suspicious events requiring on-site verification,” “water quality changes confirmed by reference samples,” and “invalid data affected by contamination or drift.” This grading is more suitable for continuous monitoring than simple pass/fail, and allows operations, engineering, and management to communicate based on the same evidence.

For cross-industry new applications, it is recommended to establish a joint validation sample library: each sample stores time, point, operating condition, sensor raw and output values, laboratory results, and remarks. The sample library is not only for one-time calibration but also for regression testing of firmware, model, and hardware version upgrades. As customers accumulate data, technical capabilities can continuously expand to new water bodies and decision problems based on fixed sensing principles.

Conclusion: Technology Platform Fixed, Application Value Jointly Defined by Field Problems

NSDD6, NSDD-Lite3, 5-in-1 EC/TDS probe, and BA series sensor interface ASICs provide integrable and verifiable sensing and interface capabilities; the ultimate value comes from the customer's understanding of industry processes, correct points, reference methods, data quality, and clear actions. Typical applications are only a part that has been validated. For new water bodies, equipment, or business models, AtomBit can collaborate from sample, selection, interface, trial installation, calibration, data interpretation to mass production, helping partners turn unknown applications into deliverable solutions.

References and Further Reading

• Modbus Organization Application Protocol and Serial Line Implementation Guide
• USGS Methods for Continuous Sensor Verification, Recording, and Data Quality
• AtomBit Industrial Sensor, ASIC, and Interface Specification Documents

This article is a summary of engineering application methods, originally compiled with reference to public agency guides and AtomBit product materials. Specific projects should comply with local regulations, industry standards, and safety requirements; conclusions involving compliance, health, or trade release should be confirmed by qualified laboratories and responsible agencies.

Supplementary Note: Project Documentation and Long-term Maintenance Mechanism

It is recommended that each project establish equipment lists, site descriptions, wiring diagrams, register tables, calibration records, reference sample records, maintenance records, alarm handling records, and version change records. Documents should be linked to device serial numbers and point IDs to avoid knowledge loss when personnel change. When the platform modifies ranges, coefficients, thresholds, and models, record the modifier, reason, time, and scope of impact, and retain rollback capability.

Long-term operation should also set indicators such as data availability, maintenance hours, calibration pass rate, communication success rate, alarm confirmation time, and effective event ratio. Indicators are not for blame but for identifying systemic issues: if maintenance hours at a site are consistently high, the installation structure may need adjustment; if false alarms concentrate during rainy periods, seasonal baselines should be improved; if reference sample coverage is chronically insufficient, sampling resources should be reallocated.
