Fouling, Calibration, and Drift Control for Online Water Sensors: An O&M Framework for Long-term Data Reliability

Why the Industry Needs Continuous, Interpretable Water Quality Data

The monitoring targets of continuous water quality measurement are not static samples, but processes that constantly change with flow, temperature, raw materials, weather, equipment status, and human operations. Traditional sampling and lab analysis are irreplaceable, but they only cover the moment of sampling. For wastewater, rivers, lakes, reservoirs, aquaculture ponds, and long-term unattended water quality stations, the real challenge lies in what happens between two samples, how long a change persists, whether it synchronizes with a process action, and when it warrants a follow-up verification. The primary value of continuous sensors is to fill these gaps with time series data.

The goal of this approach is to upgrade “the instrument gives a reading” to “the data has supporting evidence,” using traceable before/after cleaning values, verification results, maintenance logs, and quality flags to judge whether each data segment is usable. Therefore, a project should not start with “which probe to buy,” but with the decision problem, acceptable response time, data purpose, and evidence level. Data for alarms, process optimization, customer presentation, and regulatory reporting require different calibration, redundancy, and review procedures. Define the use first to avoid generating large amounts of unused data with expensive equipment.

Step 1: Translate Monitoring Objectives into Verifiable Engineering Problems

An actionable objective should include the object, location, time scale, acceptable risk, and follow-up action. For example, “When key trends of TOC, COD, UV254, turbidity, color, temperature, conductivity, TDS, and salinity deviate from the normal baseline beyond a set duration, the system issues a tiered alarm; operators check the process and site conditions, and collect a reference sample if necessary.” Such a statement is more valuable than “real-time water quality monitoring” because it simultaneously defines the point, sampling interval, thresholds, verification, and responsible personnel.

• Trend objectives: Identify baselines, daily cycles, seasonal variations, startup and shutdown processes.
• Event objectives: Capture sudden increases, drops, persistent drifts, and unreasonable combinations between parameters.
• Control objectives: Provide input for aeration, blowdown, flushing, bypass switching, filter management, or process adjustments.
• Quality objectives: Preserve raw values, status codes, cleaning/verification records, and manual notes so data can be traced.
• Business objectives: Use continuous evidence to demonstrate the value of products, processes, or services, while clearly defining measurement boundaries.

At project initiation, it is recommended to create a one-page “Measurement Task Sheet” listing normal ranges, minimum meaningful changes, expected response times, maximum acceptable data gaps, reference methods, maintenance resources, and output recipients. The task sheet is not a one-time document; it should be updated after commissioning, seasonal changes, and process modifications.

Parameter Combination: Different Measurement Mechanisms Should Explain Each Other, Not Simply Stack

Optical sensors are susceptible to optical window coverage, bubbles, and spatial distribution of suspended particles; electrochemical or conductivity channels pay more attention to electrode surfaces, temperature compensation, polarization, and ion composition. Drift is not always a sensor fault, but may originate from real changes in the water matrix. Effective quality control must record sensor status, site environment, and reference samples simultaneously, avoiding judgments based on a single calibration result.

Correspondence with AtomBit Product Capabilities

NSDD6 is suitable for multi-parameter optical online monitoring with an auto-cleaning interface; NSDD-Lite3 is a compact, reagent-free monitor for commercial and cleaner waters; the 5-in-1 EC/TDS probe integrates conductivity, TDS, salinity, specific gravity, and temperature into an industrial probe. The measurement mechanisms of these three product types differ, so contamination manifestations, verification materials, and maintenance judgments should not use the same template.

The core products discussed in this article are NSDD6, NSDD-Lite3, and the 5-in-1 EC/TDS industrial probe. Selection must be based on the latest specifications, target water sample, range, temperature, pressure, materials, interface, and installation conditions. This website article provides engineering logic and does not replace item-by-item technical confirmation; for new water bodies or cross-industry applications, AtomBit can assist with sample evaluation, interface confirmation, trial installation, and model validation.

System Architecture: From Probe to Actionable Information Requires a Complete Data Chain

A reliable system typically includes five layers: the measurement layer stably acquires raw signals; the edge layer handles power, communication, time synchronization, and status collection; the platform layer manages storage, unit conversion, quality flags, and permissions; the analysis layer handles baselines, rates of change, correlations, and event rules; the business layer delivers results to operations, quality, after-sales, or customer interfaces. The absence of any layer may render a “seemingly online” system practically worthless.

RS485/Modbus RTU is suitable for multi-device buses in industrial settings. Engineers should unify addresses, baud rates, parity, register types, data lengths, byte orders, units, and scaling factors. The master polling should have reasonable timeouts and retries; communication failures should not be automatically written as zero values. Each record should ideally include device time, platform reception time, quality status, maintenance status, and raw register snapshots to facilitate issue tracing.

Data Frequency: Higher is Not Always Better

The sampling period should be shorter than the change time of the target event, but also consider sensor response, flow cell turnover, network bandwidth, and storage. Second-level acquisition is suitable for device diagnostics; minute-level averages are often used for operation screens; hourly or daily statistics are appropriate for management reports. It is recommended to save high-frequency raw data and then generate derived data at different time scales, avoiding the situation where only averages are kept and transients cannot be reviewed.

Point Selection and Installation: Representativeness is Usually More Important than Nominal Accuracy

The maintenance interval should be determined by the on-site fouling rate, not mechanically set to “once a month.” First establish a fouling growth curve with a shorter interval, then adjust the frequency based on before/after cleaning differences, auto-cleaning effectiveness, season, and water temperature. After heavy rain, algae blooms, sludge floatation, oil shocks, or equipment shutdowns, event-driven extra inspections should be arranged.

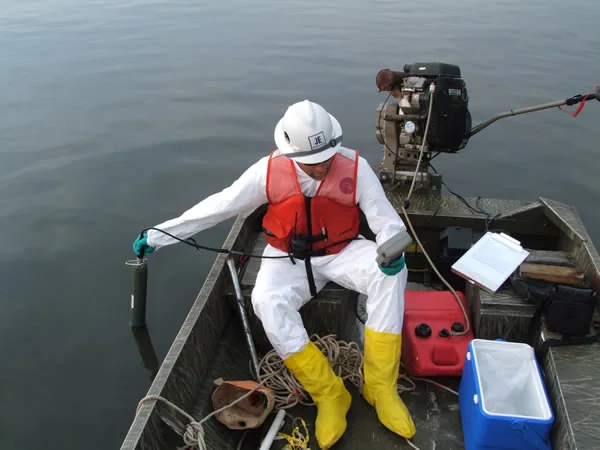

Submersion installation should keep the sensing surface continuously immersed, avoid direct impact and cable strain, and reserve space for lifting, cleaning, and replacement. Flow-through installation should ensure sample representativeness, stable flow, bubble removal, and supporting structures for shutoff, bypass, drain, and flushing. For high-pressure, high-temperature, corrosive, or food-contact applications, sealing, materials, and hygiene requirements must be separately confirmed.

• Survey actual minimum and maximum water levels, flow, temperature, pressure, and pollution load.
• Compare candidate points with portable instruments or grab samples to confirm spatial representativeness.
• Check for bubbles, sediment, floating debris, sunlight, vibration, electromagnetic interference, and maintenance safety.
• Record installation depth, orientation, flow cell volume, pipe length, and photos for the station file.
• During commissioning, also retain reference samples to validate the point and response time before finalizing the design.

Calibration, Verification, and Data Quality: Establish a “Before Cleaning – After Cleaning – After Verification” Evidence Chain

Quality control for continuous sensors cannot be reduced to a single calibration date. Each maintenance session should first record the stable value before cleaning and the site status, then complete cleaning and record the value after cleaning, and finally perform verification using a reference solution, portable reference instrument, or representative sample. These three sets of data can distinguish between fouling effects, calibration drift, and real changes in the water body. If only the final normal value is retained, there is no basis for judging whether historical data is usable.

Laboratory comparisons must ensure that samples correspond to the sensor readings in time and space, and record sampling, preservation, transport, methods, and uncertainty. For spectral surrogate parameters, the normal range, low values, high values, and typical anomalies of the target water body should be covered; model evaluation should not only look at the correlation coefficient but also examine residuals, low-value bias, high-value saturation, seasonal stability, and cross-point applicability. When the water matrix changes significantly, revalidation should be performed.

Data platforms should use quality flags rather than simply deleting anomalies. It is recommended to distinguish at least: valid, under maintenance, cleaning recovery period, under verification, communication failure, out of range, suspected bubble, suspected fouling, and pending review. Customer-facing charts can hide invalid segments, but the internal database must retain raw values, reasons, and processing records.

Alarm Design: Threshold, Rate of Change, Duration, and Parameter Correlation are All Indispensable

A single fixed threshold is easily affected by seasonal, recipe, raw water, and operating condition changes. More robust rules can combine absolute thresholds, relative baselines, rates of change, durations, consistency of multiple parameters, and equipment status. For example, a sudden increase in turbidity without corresponding changes in flow, UV254, and organic trends may indicate bubbles or local particles; if multiple related parameters change synchronously and persist, it is more worth triggering sample collection and manual inspection.

Alarms must be bound to a handling procedure: who receives it, how soon to confirm, which status to check first, whether to re-measure, when to sample, when to escalate, when to close. Unverified automatic control should have upper/lower limits, hysteresis, minimum run time, interlocks, and manual override to prevent brief sensor anomalies from directly driving critical equipment.

Common Failure Modes and Prevention Measures

• Reading immediately after cleaning without waiting for the signal to stabilize
• Using contaminated or expired standard solutions for verification
• Maintenance personnel only record post-calibration results, without retaining pre-calibration and pre-cleaning readings
• Auto-cleaning action is normal but the optical window still has stubborn deposits
• Deleting anomalous points directly without retaining the cause, time, and raw value

The common characteristic of these issues is that the equipment itself may not be damaged, but the data has lost representativeness or interpretability. Prevention strategies should cover site structure, communication, algorithms, personnel, and documentation, rather than attributing all problems to “recalibrate.” When anomalies occur, first check status codes, raw signals, adjacent parameters, maintenance records, and site events, then decide on cleaning, verification, model rebuilding, or component replacement.

How to Calculate Total Cost of Ownership and Project Benefits

Reduce false alarms, ineffective inspections, and unexplainable data gaps, enabling customers to make process adjustments, trend reports, and cross-site comparisons based on continuous data.

The cost model should at least include sensors and accessories, installation structure, power and communication, platform, reference samples, consumables, labor, inspection travel, downtime, spare parts, and data review. Benefits can be measured by anomaly lead time, reduced manual sampling, avoided downtime or quality loss, chemical and energy optimization, fewer false alarms, and customer service efficiency. For reagent-free solutions, a full lifecycle comparison with traditional schemes should be made, including reagent procurement, storage, waste liquid, and pump/valve maintenance.

During the pilot phase, do not rush to promise large savings. First select a point with a clear pain point and access to reference samples, run a period covering typical operating conditions, and statistically assess data availability, maintenance time, number of events found, false alarm rate, and relationship with the reference method. Only when a verifiable pilot report is formed can scaling have a reliable basis.

Phased Implementation Roadmap

1. Requirements Definition: Determine business issues, parameters, candidate points, data uses, reference methods, and responsible parties.
2. Sample and Interface Evaluation: Check water sample range, environmental conditions, power, communication, materials, and controller interface.
3. Small-Scale Pilot: Establish installation file, baseline, maintenance interval, reference samples, and quality flags.
4. Model and Alarm Validation: Check errors, residuals, seasonal stability, and alarm handling effectiveness using independent data.
5. Scale Deployment: Replicate validated structures, address planning, parameter tables, O&M forms, and spare parts strategies.
6. Continuous Improvement: Review data availability, maintenance costs, event value, and model version monthly or quarterly.

At each stage, keep an “exit condition”: if the point is not representative, the target change is less than system uncertainty, maintenance resources are insufficient, or data has no clear user, modify the plan rather than continue adding equipment. For new industries not previously covered by AtomBit, the customer’s process expertise combined with our sensing, interface, and engineering validation capabilities can jointly define new application boundaries.

Procurement and Technical Review Checklist

• Are the target water body, parameters, range, temperature, pressure, materials, and expected response time confirmed in writing?
• Do sensors, probes, cables, cleaning devices, flow cells, brackets, gateways, and power supplies form a complete BOM?
• Are communication protocol, registers, byte order, address, baud rate, status codes, and abnormal values debugged?
• Are calibration solutions, reference instruments, laboratory methods, sampling plan, and acceptance criteria clearly defined?
• Are responsibilities for auto-cleaning, manual maintenance, spare parts, training, remote support, and data management assigned?
• Do all promotional materials, alarms, and reports accurately describe the boundaries of trends, surrogates, screening, and compliance results?

Engineering Appendix: How to Review a Single Reading to a Credible Conclusion

When reviewing a data segment, first check completeness: Is the time continuous? Does the device clock jump? Are communication failures written as zero? Are maintenance periods correctly flagged? Second, check physical plausibility: Are temperature and range reasonable? Is the rate of change possible? Do related parameters show identical or completely opposite anomalies? Third, check site evidence: Do pump, valve, aeration, feeding, rainfall, discharge, cleaning, and sampling records correspond to the curve?

Fourth, compare. First compare with the historical baseline of the same device, then with adjacent points, other measurement mechanisms, and reference samples. Comparison must unify time, unit, temperature condition, and sampling location. Disagreement between two methods does not automatically indicate the online sensor is wrong; it could stem from sample inconsistency, preservation changes, laboratory uncertainty, or different measurement targets. The difference itself is important information for understanding the water body.

Fifth, form a conclusion rating. Conclusions can be classified as “trend changes with normal device status,” “suspicious events requiring site verification,” “water quality changes confirmed by reference samples,” and “invalid data affected by fouling or drift.” This grading is more suitable for continuous monitoring than simple pass/fail, and enables operations, engineering, and management personnel to communicate based on the same evidence.

For cross-industry new applications, it is recommended to establish a joint validation sample library: each sample records time, point, operating conditions, sensor raw and output, lab results, and remarks. The library is not only used for initial calibration, but also for regression testing of firmware, model, and hardware version upgrades. As customers accumulate data, technical capabilities can continuously expand to new water bodies and decision problems on a fixed sensing principle.

Conclusion: Technology Platform is Fixed, Application Value is Jointly Defined by On-Site Problems

NSDD6, NSDD-Lite3, and the 5-in-1 EC/TDS industrial probe provide integrable and verifiable sensing and interface capabilities; the ultimate value comes from the customer’s understanding of industry processes, correct points, reference methods, data quality, and clear actions. Typical applications are only part of what has been validated. For new water bodies, equipment, or business models, AtomBit can collaborate from samples, selection, interface, trial installation, calibration, data interpretation to volume production, helping partners turn unknown applications into deliverable solutions.

References and Further Reading

• USGS Guidelines for Operation, Calibration, Cleaning, Drift Correction, and Data Reporting of Continuous Water Quality Monitoring Stations
• USGS Methods for Turbidity Measurement and Continuous Deployment Cleaning Verification
• AtomBit Online Water Quality Sensor Product and Installation Documentation

This article is a summary of engineering application methods, originally compiled based on public agency guidelines and AtomBit product documentation. Specific projects should comply with local regulations, industry standards, and safety requirements; conclusions involving compliance, health, or trade release should be confirmed by qualified laboratories and responsible agencies.

Supplementary Notes: Project Documentation and Long-Term Maintenance Mechanism

It is recommended that each project establish equipment lists, site descriptions, wiring diagrams, register tables, calibration records, reference sample records, maintenance logs, alarm handling records, and version change records. Documents should be linked to device serial numbers and point IDs to avoid knowledge loss when personnel change. When platform settings (range, coefficients, thresholds, models) are modified, the modifier, reason, time, and impact range must be recorded, and rollback capability retained.

Long-term operation should also set indicators such as data availability, maintenance hours, verification pass rate, communication success rate, alarm confirmation time, and valid event ratio. Indicators are not for assigning blame, but for discovering systemic issues: if maintenance hours at a site are consistently high, installation structure may need adjustment; if false alarms concentrate during rainfall, seasonal baselines should be improved; if reference sample coverage is persistently insufficient, sampling resources should be reallocated.
