River, Lake & Reservoir Online Water Quality Monitoring Network: Site Layout, Event Alarming & Data Interpretation

Why This Industry Needs Continuous, Interpretable Water Quality Data

Surface water environmental monitoring does not target static samples, but processes that change with flow, temperature, raw materials, weather, equipment status, and human operation. Traditional sampling and laboratory analysis are irreplaceable, but they only cover the sampling moment. For river cross-sections, lakes, reservoirs, upstream drinking water sources, discharge impact zones, and ecological monitoring networks, the real challenge lies in what happens between two samplings: how long a change lasts, whether it synchronizes with a process action, and when it is worth triggering a review. The primary value of continuous sensors is to fill these gaps into time series.

The goal of this solution is to use a few but representative stations to continuously identify water quality baselines, seasonal variations, and events, and to trace anomalies back to causes such as rainfall, flow, upstream discharge, or water body stratification. Therefore, a project should not start with “which probe to buy”, but with the decision problem, allowed response time, data usage, and evidence level. Data for alarming, operational optimization, customer demonstration, and regulatory reporting require different calibration, redundancy, and review procedures. Define the purpose first to avoid generating large amounts of unused data with expensive equipment.

Step 1: Formulate Monitoring Objectives into Verifiable Engineering Problems

An executable objective should include subject, location, time scale, allowed risk, and follow-up action. For example, “when key trends in TOC, COD, UV254, turbidity, color, temperature, conductivity, and TDS deviate from the normal baseline and persist for a certain duration, the system generates graded alarms; operators check process and field status, and retain reference samples if necessary.” This statement is more valuable than “real-time water quality monitoring” because it simultaneously constrains station location, sampling period, thresholds, review, and responsible personnel.

• Trend objective: Identify baseline, diurnal cycles, seasonal variations, startup and shutdown processes.
• Event objective: Capture sudden increases, decreases, persistent drifts, and unreasonable combinations between parameters.
• Control objective: Provide input for aeration, discharge, flushing, bypass switching, filter management, or process adjustments.
• Quality objective: Save raw values, status codes, cleaning & calibration records, and manual notes to ensure data traceability.
• Business objective: Use continuous evidence to demonstrate the value of products, processes, or services, while clearly defining measurement boundaries.

At project initiation, it is recommended to create a one-page “Measurement Task Sheet”: list normal range, minimum meaningful change, expected response time, maximum acceptable data gap, reference method, maintenance resources, and output recipients. The task sheet is not a one-time document but should be updated after commissioning, seasonal changes, and process modifications.

Parameter Combination: Different Measurement Mechanisms Should Explain Each Other, Not Simply Stack

The core of river and lake monitoring is spatial-temporal representativeness. A single nearshore quiescent point cannot automatically represent the entire cross-section, nor can a surface point represent a reservoir with a thermocline. Continuous sensors are suitable for detecting when and how fast changes occur; cross-section surveys, vertical profiles, and laboratory samples are used to explain spatial differences and confirm pollutant composition.

Correspondence with AtomBit Product Capabilities

The NSDD6 provides continuous optical information on organic load, UV absorption, particle scattering, color, and temperature; the 5-in-1 EC/TDS probe supplements ionic strength, salinity, and temperature. Combining data from these two mechanisms with water level, flow, and meteorological information makes it easier to distinguish sediment scouring, salt intrusion, organic pollution, and algal activity than using a single parameter.

The core products involved in this article are the NSDD6 multispectral sensor paired with the 5-in-1 EC/TDS probe. Selection must be based on the latest datasheet, target water sample, range, temperature, pressure, materials, interfaces, and installation conditions. Website articles provide engineering logic but do not replace item-by-item technical confirmation; for new water bodies or cross-industry applications, AtomBit can assist with sample evaluation, interface confirmation, trial installation, and model validation.

System Architecture: From Probe to Actionable Information Requires a Complete Data Chain

A reliable system typically includes five layers: the measurement layer for stable raw signal acquisition; the edge layer for power supply, communication, time synchronization, and status collection; the platform layer for storage, unit consistency, quality tagging, and permissions; the analysis layer for baselining, rate of change, correlation, and event rules; and the business layer for delivering results to operations, quality, after-sales, or customer interfaces. Missing any layer can render a “seemingly online” system practically useless.

RS485/Modbus RTU is suitable for multi-device buses in industrial sites. Engineers should unify addresses, baud rates, parity, register types, data lengths, byte order, units, and scaling factors; the master should set reasonable timeouts and retries for polling, and should not automatically write communication failures as zero. Each record should ideally include device time, platform reception time, quality status, maintenance status, and raw register snapshot for easy troubleshooting.

Data Frequency: Faster Is Not Always Better

The sampling period should be shorter than the change time of the target event, but also consider sensor response, flow cell replacement, network bandwidth, and storage. Second-level acquisition suits device diagnostics, minute-level averages are often used for operational screens, and hourly/daily statistics fit management reports. It is recommended to save high-frequency raw data and then generate derived data at different time scales, avoiding the inability to review transients if only averages are stored.

Station Location and Installation: Representativeness Usually Matters More Than Nominal Accuracy

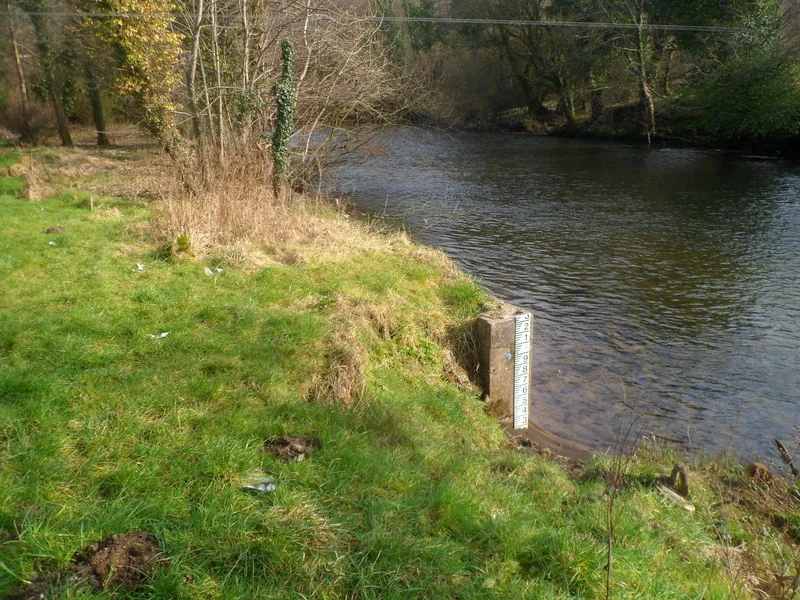

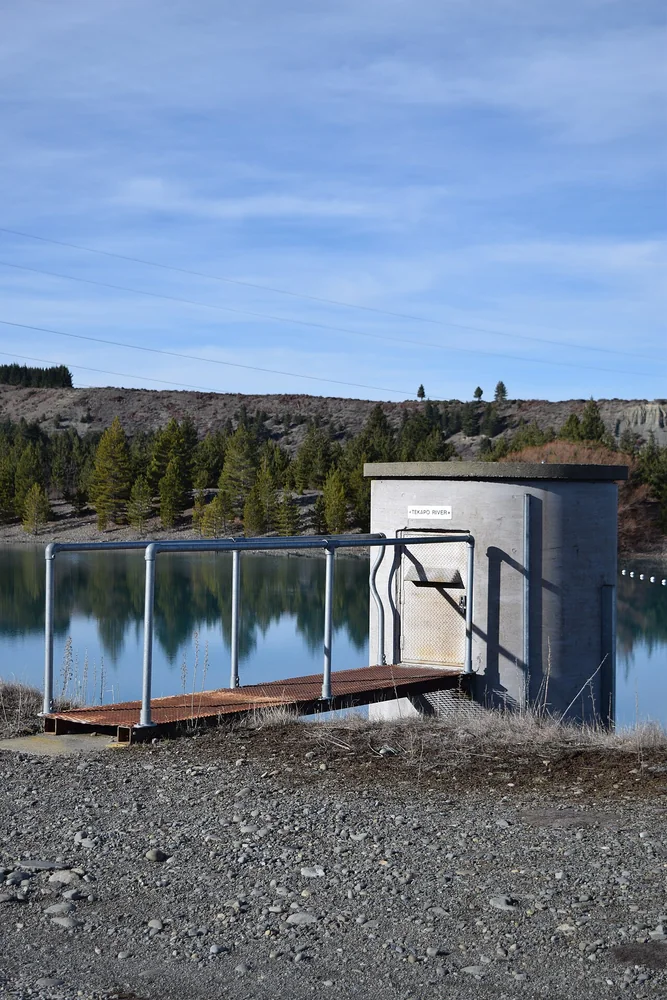

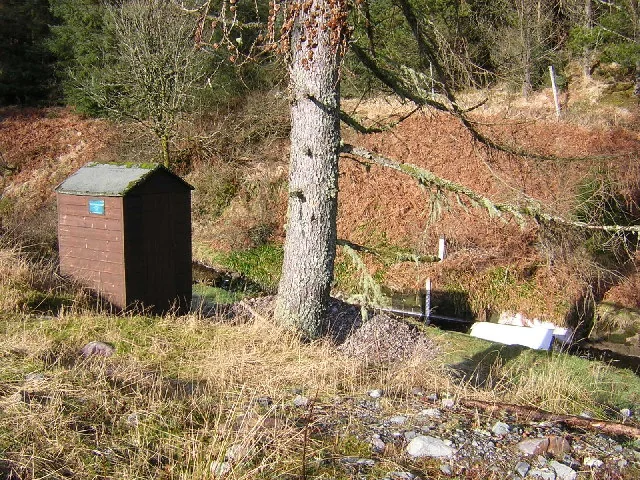

River stations should use cross-section surveys to find locations with adequate mixing, stable flow, and safe maintenance access; lake and reservoir stations need to assess water level changes, wind waves, stratification, and algal accumulation. Stations near discharge points suit event warning, while downstream mixing sections suit impact assessment; they cannot replace each other.

Submersion installation should keep the sensing surface continuously submerged, avoid direct impact and cable stress, and allow room for lifting, cleaning, and replacement. Flow-through installation should ensure representative samples, stable flow, bubble removal, and supporting shut-off, bypass, drain, and flush structures. High pressure, high temperature, corrosive, or food-contact applications require separate confirmation of seals, materials, and hygiene requirements.

• Survey the actual lowest and highest water levels, flow, temperature, pressure, and pollution load.
• Compare candidate stations with portable instruments or sampling to confirm spatial representativeness.
• Check for bubbles, sediment, floating debris, sunlight, vibration, electromagnetic interference, and maintenance safety.
• Record installation depth, orientation, flow cell volume, pipe length, and photos in the station archive.
• During commissioning, retain reference samples to verify station location and response time before finalizing the design.

Calibration, Verification, and Data Quality: Build a “Pre-Cleaning – Post-Cleaning – Post-Check” Evidence Chain

Quality control for continuous sensors cannot be reduced to a single calibration date. Each maintenance session should first record stable values and field status before cleaning, then complete cleaning and record post-cleaning values, and finally verify using reference solution, portable reference instrument, or representative sample. Three sets of data can distinguish between fouling effects, calibration drift, and real water body changes. If only the final normal value is retained, the basis for judging whether historical data can be used is lost.

Laboratory comparisons must ensure that samples correspond in time and space to sensor readings, and record sampling, preservation, transport, method, and uncertainty. For spectral proxy parameters, the normal, low, high, and typical abnormal values of the target water body should be covered; model evaluation should not only look at correlation coefficients but also examine residuals, low-value bias, high-value saturation, seasonal stability, and cross-station applicability. When the water matrix changes significantly, re-validation should be performed.

Data platforms should use quality tags rather than simply deleting anomalies. It is recommended to at least distinguish: valid, under maintenance, cleaning recovery, under verification, communication failure, out of range, suspected bubble, suspected fouling, and pending review. Customer-facing charts can hide invalid segments, but internal databases must retain raw values, reasons, and processing records.

Alarm Design: Threshold, Rate of Change, Duration, and Parameter Correlation Are All Essential

A single fixed threshold is easily affected by seasonal, recipe, raw water, and operating condition changes. More robust rules can combine absolute thresholds, relative baselines, rate of change, duration, consistency among multiple parameters, and equipment status. For example, a sudden increase in turbidity without corresponding trends in flow, UV254, and organic matter may indicate bubbles or local particles; if multiple related parameters change synchronously and persist, it is more worthy of triggering sample collection and manual inspection.

Alarms must be bound to a handling procedure: who receives it, how soon to acknowledge, which statuses to check first, whether to re-measure, when to retain a sample, when to escalate, and when to close. Unverified automatic control should be equipped with upper/lower limits, hysteresis, minimum run time, interlocks, and manual override to avoid direct actuation of key equipment due to transient sensor anomalies.

Common Failure Modes and Prevention Methods

• Insufficient representativeness due to backwater or dead zones near the bank.
• Flood season water level changes cause probes to be exposed or buried by sediment.
• Solar radiation and algal films accelerate optical window fouling.
• Fixed thresholds ignoring seasonal baselines generate numerous false alarms.
• Communication outages without data gap tagging or backfilling.

The common feature of these issues is that the equipment itself may not be damaged, but the data has lost representativeness or interpretability. Prevention strategies should cover field structure, communication, algorithms, personnel, and documentation, rather than attributing all problems to “recalibration”. When an anomaly occurs, first check status codes, raw signals, adjacent parameters, maintenance records, and field events before deciding on cleaning, calibration, re-modeling, or component replacement.

How to Calculate Total Cost of Ownership and Project Benefits

Extending a few snapshots from surveys into continuous event curves provides more timely evidence for pollution source tracing, intake safety, reservoir operation, and environmental management.

The cost model should at least include sensors and accessories, installation structure, power/communication, platform, reference samples, consumables, labor, inspection travel, downtime, spare parts, and data review. Benefits can be measured by early warning lead time, reduced manual sampling, avoided downtime or quality loss, chemical/energy savings, fewer nuisance alarms, and customer service efficiency. For reagent-free solutions, a full life-cycle comparison with traditional methods should also include reagent procurement, storage, waste, and pump/valve maintenance.

Do not rush to promise large savings during the pilot phase. First select a station with a clear pain point and reference sample availability, run it for one cycle covering typical conditions, and statistically analyze data availability, maintenance time, event discoveries, false alarm rate, and relationship with reference methods. Only a verifiable pilot report provides a reliable basis for scale-up.

Phased Implementation Roadmap

1. Requirements definition: determine business problem, parameters, candidate stations, data usage, reference methods, and responsible personnel.
2. Sample and interface assessment: verify water sample range, environmental conditions, power supply, communication, materials, and host interface.
3. Small-scale pilot: establish installation archive, baseline, maintenance cycle, reference samples, and quality tags.
4. Model and alarm validation: check errors, residuals, seasonal stability, and alarm handling effectiveness with independent data.
5. Scale deployment: replicate verified structure, address plan, parameter tables, maintenance forms, and spare parts strategy.
6. Continuous improvement: review data availability, maintenance costs, event value, and model version on a monthly or quarterly basis.

At each stage, preserve an “exit condition”: if the station is not representative, the target change is smaller than system uncertainty, maintenance resources are insufficient, or there is no clear data user, modify the plan rather than continue adding equipment. For new industries not previously covered by AtomBit, the customer's process knowledge combined with our sensing, interface, and engineering validation capabilities can jointly define new application boundaries.

Procurement and Technical Review Checklist

• Are target water body, parameters, range, temperature, pressure, materials, and expected response time documented?
• Do the sensor, probe, cable, cleaning device, flow cell, bracket, gateway, and power supply form a complete BOM?
• Are communication protocol, registers, byte order, address, baud rate, status codes, and anomaly values verified through integration?
• Are calibration solutions, reference instruments, laboratory methods, sampling plan, and acceptance criteria clearly defined?
• Is the division of responsibilities for auto-cleaning, manual maintenance, spare parts, training, remote support, and data accountability established?
• Do all publicity, alarms, and reports accurately describe the boundaries of trends, proxy measurements, screening, and compliance results?

Engineering Appendix: Review Method from a Single Reading to a Trustworthy Conclusion

When reviewing a data segment, first check completeness: is the time continuous, did the device clock jump, were communication failures written as zero, and were maintenance periods correctly tagged. Second, check physical plausibility: are temperature and range reasonable, is the rate of change possible, and do related parameters show identical or completely opposite anomalies. Third, check field evidence: do pump, valve, aeration, feeding, rainfall, discharge, cleaning, and sampling records correspond to the curves.

Fourth, compare. First compare with the historical baseline of the same device, then with adjacent stations, other measurement mechanisms, and reference samples. Comparison must unify time, units, temperature conditions, and sampling location. Inconsistency between two methods does not automatically mean the online sensor is wrong; it may come from sample heterogeneity, preservation changes, laboratory uncertainty, or different measurands between methods. The difference itself is important information for understanding the water body.

Fifth, form a conclusion hierarchy. Conclusions can be classified as “trend changes with normal equipment status,” “suspicious events requiring field verification,” “water quality changes confirmed by reference samples,” and “invalid data due to fouling or drift.” This grading is more suitable for continuous monitoring than simple pass/fail, and enables operations, engineering, and management to communicate based on the same evidence.

For cross-industry new applications, it is recommended to establish a joint validation sample bank: each sample records time, station, operating conditions, sensor raw and output values, laboratory results, and remarks. The sample bank is not only for one-time calibration but also for regression testing during firmware, model, and hardware version upgrades. As customers accumulate data, technical capabilities can continuously expand to new water bodies and decision problems based on fixed sensing principles.

Conclusion: Technology Platform Is Fixed, Application Value Is Jointly Defined by Field Problems

The NSDD6 multispectral sensor paired with the 5-in-1 EC/TDS probe provides integrable and verifiable sensing and interface capabilities; the ultimate value comes from the customer's understanding of industry processes, correct station location, reference methods, data quality, and clear actions. Typical applications are only a validated subset. For new water bodies, equipment, or business models, AtomBit can collaborate on sample evaluation, selection, interface, trial installation, calibration, data interpretation, and mass production to help partners turn unknown applications into deliverable solutions.

References and Further Reading

• USGS guidelines for continuous surface-water monitoring: station location, cross-section survey, vertical profiles, and data review
• EPA guidelines for online water quality monitoring: anomaly detection and baseline methods
• AtomBit NSDD6 and 5-in-1 EC/TDS product documentation

This article summarizes engineering application methods, originally organized based on public agency guidelines and AtomBit product materials. Specific projects should comply with local regulations, industry standards, and safety requirements; conclusions involving compliance, health, or trade release should be confirmed by accredited laboratories and responsible authorities.

Supplementary Note: Project Documentation and Long-Term Maintenance Mechanism

It is recommended that each project establish equipment lists, station descriptions, wiring diagrams, register tables, calibration records, reference sample records, maintenance records, alarm handling records, and version change records. Documents should be associated with device serial numbers and station IDs to avoid knowledge loss when personnel change. Any modification to platform ranges, coefficients, thresholds, and models must record the modifier, reason, time, and impact scope, and retain rollback capability.

Long-term operations should also set indicators such as data availability, maintenance hours, verification pass rate, communication success rate, alarm acknowledgment time, and effective event ratio. Indicators are not for blame but to identify systemic issues: if a station's maintenance hours are persistently high, the installation structure may need adjustment; if false alarms concentrate during rainfall, seasonal baselines should be improved; if reference sample coverage is chronically insufficient, sampling resources should be reallocated.
