Design of Multispectral Online Monitoring System for Wastewater: From TOC, COD, UV254 to Turbidity and Color Engineering Methods

Why the Industry Needs Continuous, Interpretable Water Quality Data

The monitoring target of wastewater treatment is not a static sample, but a process that constantly changes with flow rate, temperature, raw materials, weather, equipment status, and human operations. Traditional sampling and laboratory analysis are irreplaceable, but they only cover the sampling moment. For municipal wastewater plants, food and beverage wastewater, comprehensive industrial park wastewater, and industrial drainage systems requiring continuous trend judgment, the real difficulty lies in what happens between two samplings, how long the change lasts, whether it synchronizes with a process action, and when it is worth triggering a review. The primary value of continuous sensors is to fill these gaps into time series.

The goal of this solution is to establish an interpretable continuous data chain between influent fluctuations, treatment unit load changes, and discharge anomalies, rather than treating online instruments merely as isolated numeric displays. Therefore, the project should not start with “which probe to buy,” but with decision problems, allowable response time, data usage, and evidence level. Data for alarms, operational optimization, customer presentation, and regulatory reporting require different calibration, redundancy, and review procedures. Define the purpose first to avoid using expensive equipment to generate a large amount of unused data.

Step 1: Translate Monitoring Objectives into Verifiable Engineering Problems

An executable objective should include object, location, time scale, acceptable risk, and follow-up action. For example, “When key trends of TOC, COD, UV254, turbidity, color, and temperature deviate from normal baseline and persist for a certain time, the system issues graded alarms, operators inspect process and field status, and retain reference samples when necessary.” Such a statement is more valuable than “real-time water quality monitoring” because it simultaneously constrains points, sampling period, thresholds, review, and responsible persons.

• Trend objectives: identify baseline, diurnal cycles, seasonal changes, startup and shutdown processes.
• Event objectives: capture sudden increases, sudden drops, persistent drifts, and unreasonable combinations between parameters.
• Control objectives: provide input for aeration, blowdown, flushing, bypass switching, filter management, or process adjustment.
• Quality objectives: preserve raw values, status codes, cleaning and calibration records, and manual notes to ensure data traceability.
• Commercial objectives: use continuous evidence to demonstrate the value of products, processes, or services, while clearly defining measurement boundaries.

At project initiation, it is recommended to create a one-page “Measurement Task Sheet”: list normal range, minimum meaningful change, expected response time, maximum acceptable data gap, reference method, maintenance resources, and output recipients. The task sheet is not a one-time document but should be updated after commissioning, seasonal changes, and process modifications.

Parameter Combination: Different Measurement Mechanisms Should Explain Each Other, Not Simply Stack

The value of multispectral measurement lies not in replicating laboratory methods, but in capturing changes in organic load and optical properties at high frequency, continuously, and without reagents. UV254 is sensitive to changes in absorption of specific organic substances, scattering signals are used to describe particulate and turbidity changes, and combined models can form TOC or COD trend quantities suitable for the target water body. In engineering, it should be defined as a process monitoring and anomaly screening tool, with field relationships established through representative laboratory samples.

Correspondence with AtomBit Product Capabilities

The NSDD6 integrates spectral absorption, scattering, and temperature information into a single industrial probe deployable for long-term operation, outputting continuous results such as TOC, COD, UV254, turbidity, color, and temperature; RS485/Modbus RTU facilitates integration into PLCs, edge gateways, or data platforms, and the auto-cleaning interface helps reduce maintenance pressure from long-term fouling.

The core product involved in this article is the AtomBit NSDD6 reagent-free multispectral industrial water quality sensor. Selection must be based on the latest specification sheet, target water sample, range, temperature, pressure, materials, interface, and installation conditions. Website articles provide engineering logic and do not replace item-by-item technical confirmation; for new water bodies or cross-industry applications, AtomBit can assist with sample evaluation, interface confirmation, trial installation, and model validation.

System Architecture: From Probe to Actionable Information Requires a Complete Data Chain

A reliable system typically includes five layers: the measurement layer is responsible for stable acquisition of raw signals; the edge layer is responsible for power supply, communication, time synchronization, and status acquisition; the platform layer is responsible for storage, unit unification, quality marking, and permissions; the analysis layer is responsible for baselines, rate of change, correlations, and event rules; the business layer delivers results to operations, quality, after-sales, or customer interfaces. The absence of any layer may cause a “seemingly online” system to lose practical value.

RS485/Modbus RTU is suitable for multi-device buses in industrial sites. Engineers should unify addresses, baud rates, parity, register types, data lengths, byte orders, units, and scaling factors; the master polling should set reasonable timeouts and retries, and communication failures should not be automatically written as zero values. Each record should ideally include device time, platform reception time, quality status, maintenance status, and raw register snapshots for easy problem tracking.

Data Frequency: Faster Is Not Always Better

The sampling period should be shorter than the change time of the target event, but also consider sensor response, flow cell turnover, network bandwidth, and storage. Second-level acquisition is suitable for equipment diagnostics, minute-level averages are commonly used for operation screens, and hourly or daily statistics are suitable for management reports. It is recommended to save high-frequency raw data and then generate derived data at different time scales, avoiding storing only averages that cannot be used to review transients.

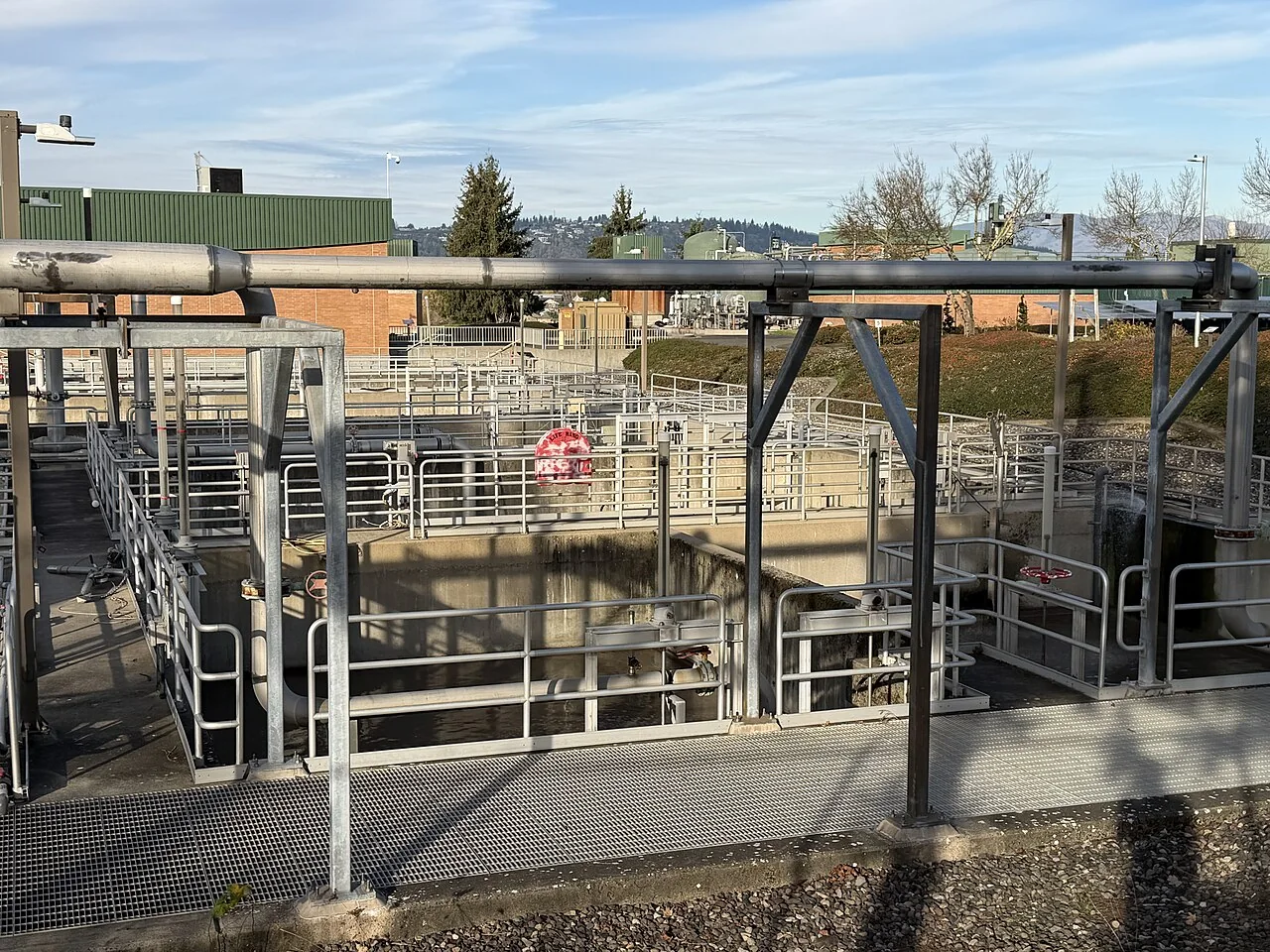

Point Selection and Installation: Representativeness Is Often More Important Than Nominal Accuracy

Inlet wells are suitable for detecting load shocks, before and after biological sections for observing removal trends, before and after advanced treatment for comparing process contributions, and the final discharge for continuous monitoring and triggering reviews. Each point must check mixing uniformity, bubbles, sedimentation, direct sunlight, cleaning accessibility, and maintenance safety; do not decide installation location simply because there is a power source nearby.

Immersion installation should ensure the sensing surface is continuously submerged, avoid direct impact and cable stress, and reserve space for lifting, cleaning, and replacement. Flow-through installation should ensure representative samples, stable flow, bubble exhaust, and supporting structures for shutoff, bypass, drain, and flushing. High pressure, high temperature, corrosive, or food contact scenarios also require separate confirmation of seals, materials, and hygiene requirements.

• Survey actual minimum and maximum water levels, flow rates, temperatures, pressures, and pollutant loads.
• Use portable instruments or sampling to compare candidate points to confirm spatial representativeness.
• Check bubbles, sedimentation, floating debris, sunlight, vibration, electromagnetic interference, and maintenance safety.
• Record installation depth, orientation, flow cell volume, pipeline length, and photos, and include in site archives.
• During commissioning, simultaneously retain reference samples to validate point and response time before finalizing design.

Calibration, Validation, and Data Quality: Establish a “Pre-Clean – Post-Clean – Post-Check” Evidence Chain

The quality control of continuous sensors cannot be reduced to just a calibration date. Each maintenance session should first record the stable value before cleaning and field status, then complete cleaning and record the value after cleaning, and finally perform verification using reference solution, portable reference instrument, or representative sample. The three sets of data can distinguish between fouling effects, calibration drift, and real water body changes. If only the final normal value is retained, the basis for judging whether historical data can be used is lost.

Laboratory comparison must ensure that samples correspond to sensor readings in time and space, and record sampling, preservation, transport, method, and uncertainty. For spectral surrogates, cover the normal, low, high, and typical abnormal conditions of the target water body; model evaluation should not only look at correlation coefficients but also observe residuals, low-value bias, high-value saturation, seasonal stability, and cross-point applicability. When the water matrix changes significantly, revalidation should be performed.

The data platform should use quality flags rather than simply deleting anomalies. It is recommended to at least distinguish: valid, under maintenance, cleaning recovery period, under verification, communication failure, out of range, suspected bubbles, suspected fouling, and pending review. Customer-facing charts can hide invalid segments, but the internal database must retain raw values, reasons, and processing records.

Alarm Design: Threshold, Rate of Change, Duration, and Parameter Correlation Are Indispensable

A single fixed threshold is easily affected by seasonal, recipe, raw water, and operating condition changes. A more robust rule can combine absolute thresholds, relative baselines, rate of change, duration, consistency of multiple parameters, and equipment status. For example, if turbidity suddenly increases but flow, UV254, and organic trends do not respond, it may be bubbles or local particles; if multiple related parameters change synchronously and persist, it is more worthy of triggering sample collection and manual inspection.

Alarms must be tied to a handling process: who receives, how long to acknowledge, which statuses to check first, whether to retest, when to sample, when to escalate, and when to close. Unverified automatic controls should have upper/lower limits, hysteresis, minimum run time, interlocks, and manual override to prevent sensor transient anomalies from directly driving critical equipment.

Common Failure Modes and Prevention

• Transient optical anomalies caused by bubbles or floating debris
• Slow drift caused by sludge, algae film, or grease covering the optical window
• Systematic bias after water sample matrix changes while using old model
• Treating trend-type results as equivalent to regulatory laboratory results
• False data due to communication address, register, byte order, or grounding errors

The common feature of these issues is that the device itself may not be damaged, but the data has lost representativeness or interpretability. Prevention strategies should cover site structure, communication, algorithms, personnel, and documentation, rather than attributing all problems to “recalibration.” When anomalies occur, first check status codes, raw signals, adjacent parameters, maintenance records, and field events, then decide on cleaning, verification, remodeling, or component replacement.

How to Calculate Total Cost of Ownership and Project Benefits

Filling the gaps between discrete analyses with continuous curves enables operators to see shock loads, treatment efficiency declines, and abnormal discharge risks earlier, and use pre- and post-event data to verify whether process adjustments are effective.

The cost model should include at least sensors and accessories, installation structures, power and communication, platform, reference samples, consumables, labor, inspection travel, downtime, spare parts, and data review. Benefits can be measured by anomaly lead time, reduced manual sampling, avoided downtime or quality losses, chemical and energy optimization, reduced nuisance alarms, and customer service efficiency. For reagent-free solutions, a full lifecycle comparison with traditional solutions in terms of reagent procurement, storage, waste liquid, and pump/valve maintenance should be conducted.

During the pilot phase, do not rush to promise large-scale savings. First select a point with a clear pain point and accessible reference samples, run a cycle covering typical conditions, and statistically analyze data availability, maintenance time, event detection count, false alarm rate, and relationship with reference methods. Only after forming a verifiable pilot report can scale replication have a reliable basis.

Phased Implementation Roadmap

1. Requirements definition: determine business problem, parameters, candidate points, data usage, reference methods, and responsible persons.
2. Sample and interface evaluation: verify water sample range, environmental conditions, power supply, communication, materials, and main controller interface.
3. Small-scale pilot: establish installation archive, baseline, maintenance cycle, reference samples, and quality flags.
4. Model and alarm validation: check error, residual, seasonal stability, and alarm handling effectiveness with independent data.
5. Scale deployment: replicate validated structure, address plan, parameter table, O&M forms, and spare parts strategy.
6. Continuous improvement: review data availability, maintenance cost, event value, and model version monthly or quarterly.

At each stage, retain “exit criteria”: if the point is not representative, the target change is less than system uncertainty, maintenance resources are insufficient, or data has no clear user, modify the plan rather than continue adding equipment. For new industries not pre-covered by AtomBit, the customer's process knowledge and our sensing, interface, and engineering validation capabilities can jointly define new application boundaries.

Procurement and Technical Review Checklist

• Are the target water body, parameters, range, temperature, pressure, materials, and expected response time confirmed in writing?
• Do the sensor, probe, cable, cleaning device, flow cell, bracket, gateway, and power supply form a complete BOM?
• Are communication protocol, registers, byte order, address, baud rate, status codes, and abnormal values tested?
• Are calibration solutions, reference instruments, laboratory methods, sampling plan, and acceptance criteria clearly defined?
• Are auto-cleaning, manual maintenance, spare parts, training, remote support, and data responsibilities assigned?
• Do all promotions, alarms, and reports accurately state the boundaries of trends, surrogates, screening, and compliance results?

Engineering Appendix: Review Method from a Single Reading to a Credible Conclusion

When reviewing a data segment, first check completeness: whether time is continuous, device clock jumps, communication failures written as zeros, and maintenance periods correctly flagged. Second, check physical plausibility: whether temperature and range are reasonable, whether change speed is possible, and whether related parameters show identical or completely opposite anomalies. Third, check field evidence: pump, valve, aeration, feeding, rainfall, discharge, cleaning, and sampling records correspond to curves.

Fourth is comparison. First compare with the same device's historical baseline, then with adjacent points, other measurement mechanisms, and reference samples. When comparing, time, unit, temperature conditions, and sampling location must be unified. Inconsistency between two methods does not automatically indicate online sensor error; it may come from sample inconsistency, preservation changes, laboratory uncertainty, or different measurement objects of the two methods; the difference itself is important information for understanding the water body.

Fifth is forming conclusion grades. Conclusions can be classified into “trend changes with normal equipment status,” “suspicious events requiring field verification,” “water quality changes confirmed by reference samples,” and “invalid data affected by fouling or drift.” This grading is more suitable for continuous monitoring than simple pass/fail, and enables operations, engineering, and management to communicate based on the same evidence.

For cross-industry new applications, it is recommended to establish a joint validation sample library: each sample saves time, point, operating condition, sensor raw and output, laboratory results, and remarks. The sample library is not only used for one-time calibration but also for regression testing of firmware, model, and hardware version upgrades. As customers accumulate data, technical capabilities can continuously expand to new water bodies and decision problems based on fixed sensing principles.

Conclusion: Technology Platform Fixed, Application Value Co-Defined by On-Site Problems

The AtomBit NSDD6 reagent-free multispectral industrial water quality sensor provides integrable and verifiable sensing and interface capabilities; the ultimate value comes from the customer's understanding of industry processes, correct points, reference methods, data quality, and clear actions. Typical applications are only part of what has been validated. For new water bodies, equipment, or business models, AtomBit can assist from sample, selection, interface, trial installation, calibration, data interpretation to mass production collaboration, helping partners transform unknown applications into deliverable solutions.

References and Further Reading

• US EPA “Online Water Quality Monitoring in Distribution Systems: Design Concepts” regarding UV254, turbidity, and anomalous baselines
• USGS “Continuous Water Quality Monitoring Guidelines” regarding point selection, cleaning, calibration, drift correction, and record review methods
• AtomBit NSDD6 product specification and Modbus interface documentation

This article is a summary of engineering application methods, compiled based on public agency guidelines and AtomBit product materials. Specific projects must comply with local regulations, industry standards, and safety requirements; conclusions involving compliance, health, or trade release should be confirmed by qualified laboratories and responsible agencies.

Supplementary Note: Project Documentation and Long-Term Maintenance Mechanism

It is recommended that each project establish equipment lists, site descriptions, wiring diagrams, register tables, calibration records, reference sample records, maintenance records, alarm handling records, and version change records. Documents should be linked to device serial numbers and point IDs to prevent knowledge loss after personnel changes. When the platform modifies range, coefficient, threshold, and model, the modifier, reason, time, and impact scope must be recorded, and rollback capability retained.

Long-term operation should also set indicators such as data availability, maintenance hours, verification pass rate, communication success rate, alarm acknowledgment time, and valid event ratio. Indicators are not for blame but to identify systematic issues: if a site's maintenance hours remain high, installation structure may need adjustment; if false alarms concentrate during rainy periods, seasonal baselines should be improved; if reference sample coverage is insufficient long-term, sampling resources should be rearranged.
